rock bit China tricone drill bit
| Price: |
250.0~10000.0 USD |
| Payment Terms: |
T/T,L/C,D/A,D/P,WU, |
| Special Groups: |
TCI tricone bits (153)
|
| Place of Origin: |
Hebei, China (Mainland) |
Product Detail
Model No.:
3'',3 1/2,4',41/2/,26'
Production Capacity:
500 pieces/month
Delivery Date:
7-10 days
colour:
blue or as your requirement
Size:
3-26
Formation:
soft to hard formation
Advantage:
high quality on time delive...
Means of Transport:
Ocean,Land,Air,
Packing:
wooden case
Brand Name:
HuanYu,KingDream,LiLin,JZ
Material:
ally steel, tungsten carbi...
Certification:
API
Payment term:
L/C at sight,T/T
Bearing sealed:
metal sealed(HJ) rubber se...

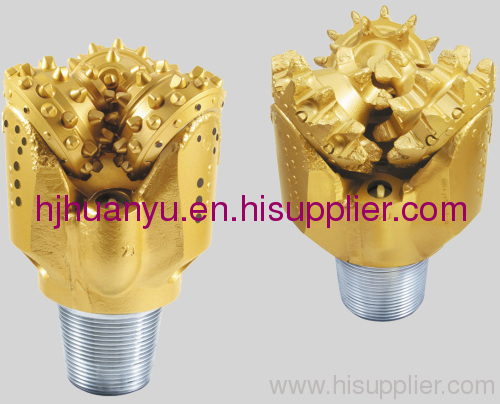

roller cone bits
1.long service time
2. well drilling
3.best price and high quality
4.we can provide the sample ,but customer need to pay all.....
tungsten carbide insert tricone bit for well drillingBit type | IADC Code | Applicable formation | Cutting structure | Normal WOB KN/mm(bit dia.) | Rotary Speed(rpm) |
THAS537G | 537 | Medium soft with low compressive strength and harder abrasive stringers,such as hard shale,hard gypsolyte,soft limestone ,sandstone and dolomite with stringers,etc. | Offset crested scoop compacts in inner row,wedge compacts in outer row,inequable spaced compacts arrangement,and with the cutting structure of primary and secondary cutters with double bresking lines on bottom hole. | 0.70~1.20 | 70~40 |
Product Description:
TCI bits series:
Soft formation TCI tricone bits:
The soft formation TCI tricone bits are used to drill low compressive strength, very soft formations. This bit maximized to use of both conical and chisel tungsten carbide inserts of large diameters and high projection. This cutting structure design, combined with maximum cone offset, results in high bit penetration rates. The deep intermesh of cutter rows prevents bit bailing in sticky formations.
Medium formation TCI tricone bits:
The medium formation TCI tricone bits features aggressive chisel tungsten carbide inserts on the heel rows and inner rows. This design provides a fast drilling rate and added cutting structure durability in medium to medium hard for mations. The HSN rubber O-ring provides adequate sealing for bearing durability.
Hard formation TCI tricone bits:
The hard formation TCI tricone bits can be used to drill hard and abrasive formations. Wear resistance tungsten carbide inserts are used in the outer rows to prevent loss of bit gauge. Maximum numbers of hemispherical shaped inserts are used in all rows to provide cutter durability and long life.
Medium hard formation TCI tricone bits:
The medium hard formation TCI tricone bits features robust chisel tungsten carbide inserts on the heel row and conical on the inner rows. This design provides a fast drilling rate and added cutting structure durability in medium to medium hard formations. The HSN rubber O-ring provides adequate sealing for bearing durability.
We can manufacture vorious of roller bit ,pdc bit and assemble bits
